Self-Powered device
No auxiliary power needed. The WIC1 relays harvest the
required supply energy from the current measurement signals.
Dual-Powered variant
A dual (redundant) powered variant is available in order to enable e.g. communication(#) and early ground (earth) fault detection.
Ultra Fast Boot-uptime
With a start-up time of less than 1 cycle, the WIC1 already protects your equipment whilst other devices are still booting. What if someone is switching onto a fault although the system is still grounded during maintenance? The WIC1 will issue a trip signal almost immediately.
Individual parameterization
With the WIC1 g2, you have all the options to configure the system according to your individual requirements. Conveniently via the „Smart view“ software (Smart view is the free software by SEG Electronics for easy configuration and evaluation), via DiggiMEC, or traditionally manually via DIP/HEX switches.
DIP / HEX Variants, for manual Individual parameterization
With the WIC1 g2, you have all the options to configure the system according to your individual requirements. Conveniently via the „Smart view“ software (Smart view is the free software by SEG Electronics for easy configuration and evaluation), via DiggiMEC, or traditionally manually via DIP/HEX switches.
Communication
The WIC1‑4 features the Modbus RTU protocol via RS485 interface, or Modbus TCP via electrical or optical Ethernet.
Retrofit - No Drilling, no Sawing
The WIC1 has the same form-factor as the predecessor. You can mount it into the cabinet in just a few minutes. No cabinet needs to be redesigned. No drilling, no sawing will be necessary. You can re-use the previously installed WIC1 CTs: Just switch over the connection cables. The first DIP switch blocks (WIC1-2) / HEX switches (WIC1-3) have the same function as the first WIC1 version, so that the settings are quickly copied.
The new WIC1 g2 -
Ultra fast.
Ultra safe.
Ultra reliable.
The new WIC1 g2 -
Ultra fast. Ultra safe.
Ultra reliable.
The WIC1 family is a series of self-powered / CT powered protection relays, designed for harshest environments. The WIC relay family does not need auxiliary energy since they are CT powered. A dual/redundant powered variant enables communication options in addition to the power outage safe protection core. The main applications are:
- Protection of Ring Main Units for Power Distribution
- Protection of Step-Up Transformers e.g. for Wind and Solar Power
- Protection of Feeders
- Current based protection when auxiliary power is not available or to costly
- Backup Protection – available in absence of auxiliary power
- Disaster recovery – Blackstart capability after (short or long lasting) outages – reliable protection, when other protection relays fail because of drained battery rooms
More great features
- Super fast and easy mounting
- Super fast and easy setting
- Made for Harsh Environment: It is no problem for the WIC1 if the RMU / Transformer is in an area with harsh climate, for example high humidity all the year, or an average temperature above 50°C.
- Ground Current: The WIC1 offers calculated and measured 1 A ground Current (option).
- Tripping Characteristics: For inverse-time overcurrent protection, you can select out of 12 characteristics (ground overcurrent: 13)
Release 2.2
Something great just got even better – We just launched Release 2.2. With this Release we are expanding the WIC1 g2 with new options for greater flexibility and safety:
- WC2 adapter converter: Now with support for 1A standard converters and lower settings for overcurrent protection.
- Configurable earth current: Choice between calculated and measured earth current – conveniently via Smart view or DiggiMEC.
- Self-monitoring via RCD output: Internal faults are signaled without tripping the circuit breaker
- Modbus RTU: New baud rates (57600 & 115200) available for WIC1-4.
- More robust TC outputs & bug fixes for trip circuit monitoring round off the update.
- The PC4 adapter can be used for firmware updates.
Four variants -
all possibilities.
Four WIC1 g2 device variants are available to meet a wide range of requirements. For example, the device variants with DIP or HEX switches allow for manual configuration.
The optional DiggiMEC® interface device enables configuration of all device variants via the integrated LCD display and switches, providing access to extended setting ranges and additional protection functions. The DiggiMEC® also allows the WIC to be connected to a Windows PC via USB-C, so the SEG configuration and analysis software „Smart view“ can be used to easily and conveniently configure the WIC1 or to transfer measurement and fault data from the WIC1.
A self-powered WIC1 variant is also available, which additionally supports SCADA communication.
WIC1-1
WIC1-2
WIC1-3
WIC1-4
System Functional Overview
The WIC1 is a CT-powered protection relay with minimal space requirement (125 x 170 mm), that complies with the highest demands on a digital protection device. Simple but safe wiring, high electromagnetic interference immunity, uncomplicated adjustment and the ability to scale to different power quantities of the switchboard, helping the switchgear manufacturer to
minimize costs.
System Overview:

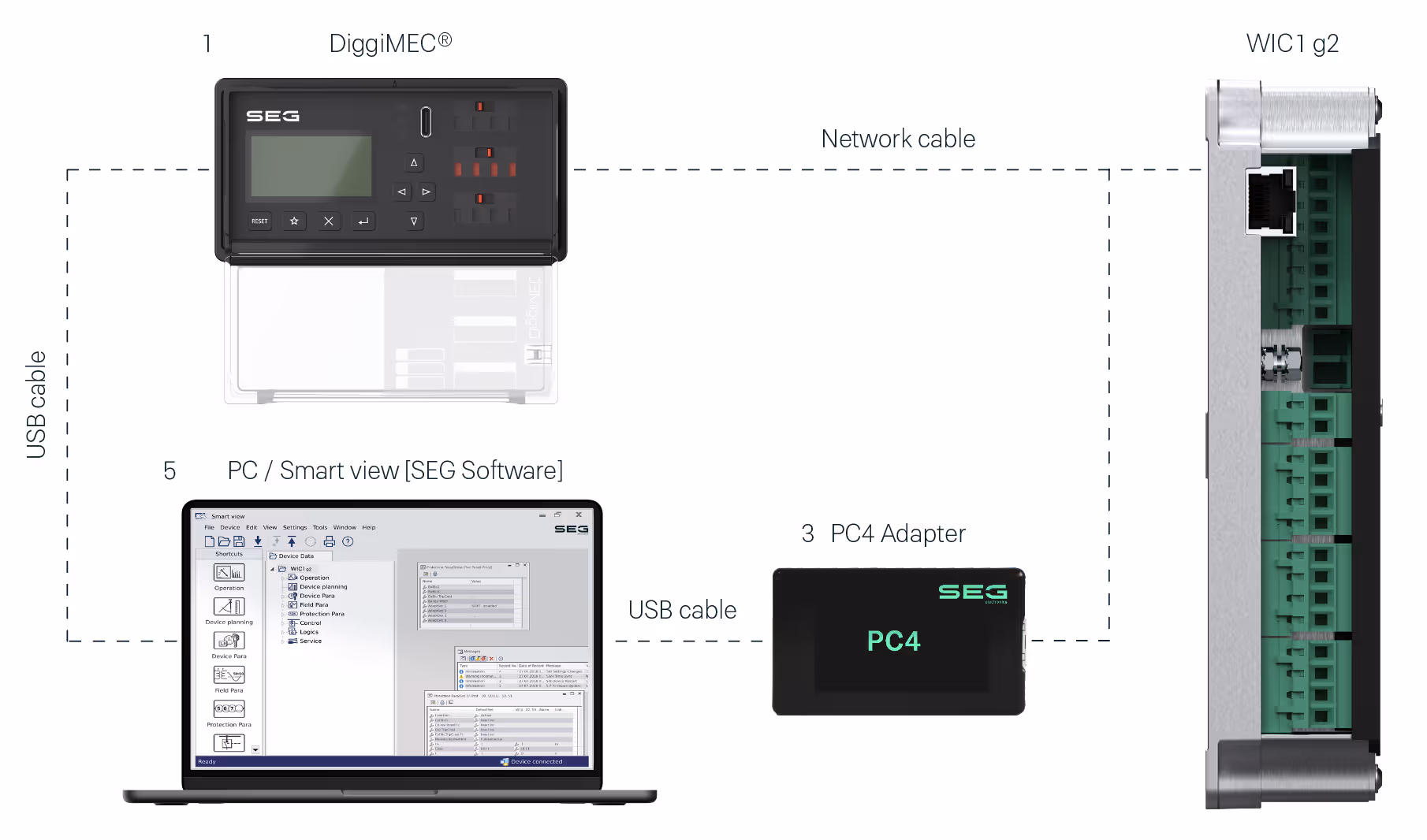

Additional System Components
The WIC1 g2 is optimized for operation with specially designed, highly efficient CTs developed by SEG. If the use of 1 A (or 5 A) standard current transformers is mandatory (for technical or historical reasons), it is possible to connect the WIC1 to standard current transformers using adapter CT. Below is an overview of the available optional components:
- DiggiMEC® Nano HMI [Image 1]
- With the DiggiMEC®, there are also up to three flag indicators available.

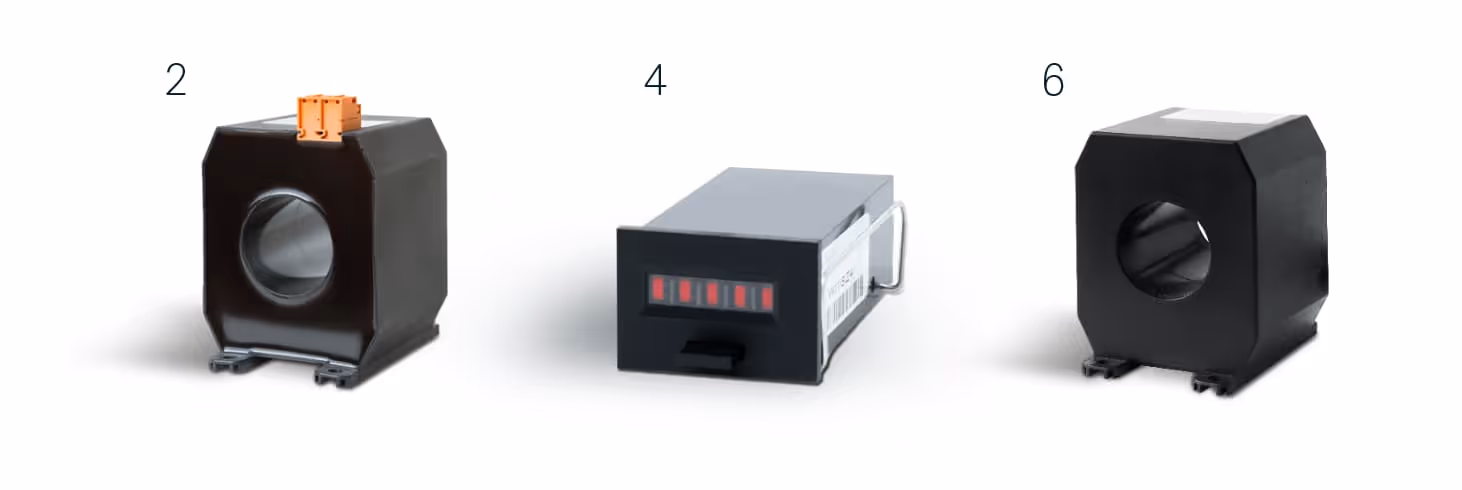

- WIC1 wide range CT [Image 2]
- WIC1 PC4 Adapter [Image 3]
- Flag indicators [Image 4] – SEG offers two mechanical flag indicators – WI1SZ4 and WI1SZ5 – as accessories for the WIC1.
- SEG configuration and analysis software “Smart view” [Image 5]
- Adapter CT (for 3 phases, combined in one housing) [image 6]
If the DiggiMEC user interface is connected to the WIC1, it is also possible to connect a PC to the USB interface of the DiggiMEC. Via PC you can then simply and conveniently execute the parameterizing and analyzing software “Smart view” and enable the user to make all settings via this connection, or to save settings to a file on the PC, or retrieve measured values or fault recorder.
Scroll down to find out more about the great features of the new SEG selfpowered protection relay. Or do you like to contact our Sales Team regarding any questions?

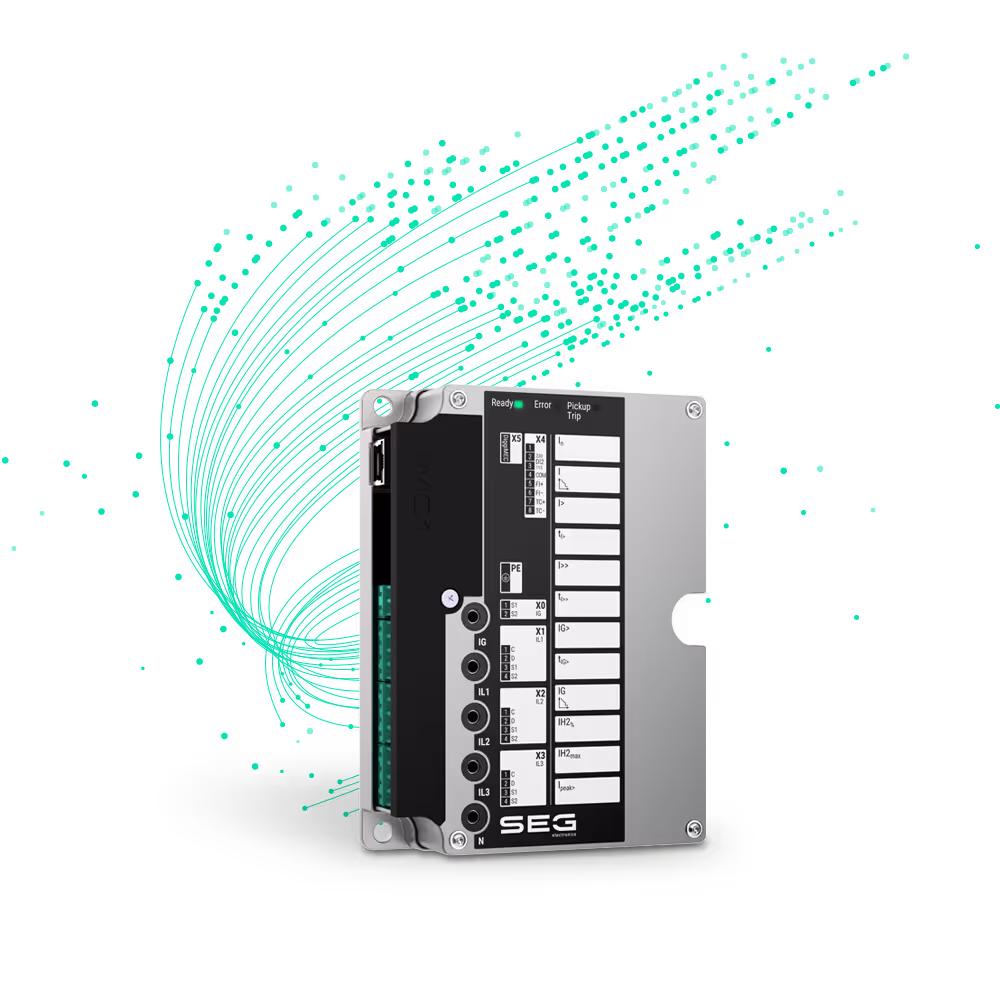

Communication.
SCADA communication with Variant WIC1-4
The WIC1-4 device variant makes integration into modern control technology now even more simple and reliable. Thanks to an external auxiliary voltage, the device supports several types of communication:
Modbus RTU
- via RS485 interface (half-duplex)
Modbus TCP
- via Ethernet RJ45
- or optical LC duplex interface (fiber optic)
Communication is processed by a co-processor – for maximum stability of the protection functions, even in the event of communication failures.
The WIC1-4 can:
- Operate 1 Modbus RTU master
- Connect 2 Modbus TCP clients simultaneously
In the event of a failure of the auxiliary voltage and thus also of communication, the protective functions are not compromised by the converter supply.
Modbus RTU now has two additional baud rate settings (WIC1-4 only):
- 57600
- 115200
COMING SOON:
With our upcoming Release 2.3 a great extension of communication will be available, it will be possible to read parameter sets via remote access.
DiggiMEC® - Nano-HMI with up to three integrated mechanical flag indicators
The DiggiMEC® is an upgrade option to the WIC1 family, It fits into a standard door cutout of 92 mm × 45 mm [DIN IEC 61554]. Its display can visualize measuring values on site. Moreover, the DiggiMEC® provides access to the protection parameters that are always exclusively inside the WIC relay. The Nano-HMI offers integrated Flag Indicators and configurable LEDs and can be mounted in no time and without any drilling.
Software settings (offline created) can be loaded into the WIC1 relays via the USB-C port of the DiggiMEC®. Just connect the DiggiMEC® and WIC1 relay via a standard Ethernet cable.
Settings via DiggiMEC®
Setting of protective elements beyond DIP/HEX switches
- Alternative Flag Indicator Assignments
- I>>> (Third Overcurrent Element)
- IG>> (Second Ground Current Element)
- Thermal Protection
- Option for flexible use of the FI (flag indicator) output of the WIC1, e. g. for measuring alarm times, or as a watchdog output (with external DIN rail output relay)
Condition Monitoring
- Breaker Wear
- Live Measurement Values Transformer Life Load Monitoring
- Peak Current Pointer
Commissioning Support
- Force manually relay positions
- Trip Indicators (manual reset option)
- Test Trip (powered via USB)
Auto Fault Report
- Information comes to you: Fault reports will pop up on the display automatically.
- Mechanical Flag Indicators indicate in a power outage safe manner what has happened.
Three function packages - for maximum flexibility.
To meet various requirements, we offer three function packages to choose from: „Standard,“ „Advanced,“ or „Professional.“
See this overview for the functions included in each package. For pricing, please contact our sales team directly. We look forward to providing you with a quote.
WIC1-1
WIC1-2
WIC1-3
WIC1-4
Standard
Advanced
Professional
(only WIC1-4)
62BF
Do you have questions regarding the WIC1 g2?
Please feel free to contact us directly.
Specs
All Device Features (Depending on variant and software function package)
1 ground current
0/2 (option – supported voltage: wide range AC/DC from 24V up to 230V* – only on WIC1-4)
WIC1-4: 24-250VDC or 48 -230VAC
62BF (only WIC1-4)
Modbus TCP
Do you have questions regarding the WIC1 g2?
Please feel free to contact us directly.
What our customers say:
The new WIC1 g2 protection relay is the successor to the successful WIC1 relays, which we started using in our Xiria, the compact Air GIS Ring Main Unit, since it’s introduction in 2002. This selfpowered relay now provides great additional options to comply with today’s digital demands.
An easy and short-term 1:1 replacement in existing projects ran absolutely smoothly, and the functionality compared to Generation 1 has also been extensively expanded.
The WIC1 g2 protection relay from SEG is very user-friendly, compact, and reliable.
