The MCDTV4 offers an all-in-one solution for HV, MV and LV transformers and it offers much more than just a differential protection package.
Furthermore it can detect critical operation states based on voltage measurement (e.g. Overexcitation). The MCDTV4 provides in addition to that an Interconnection package. This can be used for mains protection at the point of common coupling (e.g. for directional reactive power undervoltage protection). The integrated backup protection package enables the MCDTV4 to act as backup protection (e.g. for downstream breakers).
Additional features like demand management are available without extra charge. The protection functions of the MCDTV4 have been adapted to comply with the requirements of the VDE‑AR‑N‑4110: 2023-09.
Feature highlights
Redundant Ethernet
-20 / +70 °C
Intuitive
KEMA type tested
PAV,E
Comprehensive Protection Package
- 6 elements phase overcurrent protection directional and non-directional (ANSI/IEC/51C/51V)
- 4 elements earth fault protection, non-directional or directional (multi-polarising)
- Wattmetric Ground Fault Protection
- 2 elements unbalanced load protection
- Voltage protection (2) 6 elements selectable: V<, V>, V<(t)
- 6 elements unbalanced voltage supervision
- Fourth Voltage measuring input (2) 2 elements VE> or VX (for synchro-check)
- 6 elements frequency protection; each can be used as: f>, f<, df/dt (ROCOF), vector surge
- 6 elements power protection; each can be used as: P>, P<, Pr, Q>, Q<, Qr, S>, S<Two elements power factor (PF)
- PAV,E maximum power infeed
Power Quality
- THD protection
Demand Management/peak values
- Peak values of current and power, average current and energy demand
Interconnection Package
The comprehensive interconnection package is summarized within one menu:
- Non-discriminating active power direction depending load shedding
- HVRT (High Voltage Ride Through)
- FRT (LVRT): Settable FRT-Profiles, optional AR coordinated
- QV-Protection: Undervoltage-Reactive
- Power protection
- Automatic Reconnection
- Frequency protection: 6 elements configurable as f<, f>, df/dt (ROCOF), vector surge
- CB-Intertripping
- Synchro-check, now via Transformer
Control
- up to six breakers (or isolators/grounding switches)
- Breaker wear
Recorders
- Disturbance recorder: 120 s non volatile
- Fault recorder: 20 faults
- Event recorder: 300 events
- Trend recorder: 4000 non volatile entries
PC Tools
- Setting and analyzing software „Smart view“ free of charge
- Including page editor to design own Control pages
- SCADApter to re-assign datapoints for Retrofit projects: Modbus, Profibus, IEC 60870-5-103/ -104
Communication Options
- IEC 61850 Edition 2
- Profibus DP
- Modbus RTU and/or Modbus TCP
- IEC 60870-5-103/-104
- DNP 3.0 (RTU, TCP, UDP)
- SCADApter for Retrofit
- Configurable SCADA protocols: Modbus, Profibus, IEC 60870-5-103/-104, DNP3
- Redundant Ethernet: Two Ethernet channels available on the device [Electrical Ethernet [RJ45]
or Optical Ethernet [FO] - fiber optic cable]
- Switch-Mode [Redundancy with RSTP]
- PRP - Parallel Redundancy Protocol
- HSR - High-Availability Seamless Redundancy Protocol
Commissioning Support
- USB connection
- Customizable Display (Single-Line)
- Customizable Inserts
- Copy and compare parameter sets
- Configuration files are convertible
- Forcing and disarming of output relays
- Fault simulator: current, voltage
- Graphical display of tripping characteristics
- 8 languages selectable within the relay
Cyber Security
- Menu for the activation of BDEW-Whitepaper-compliant security settings (e. g. hardening of interfaces)
- Security Logger
- Centralized Security Logs (Syslog)
- Encrypted Connection Smart view Device
- Device specific certificates (No man in the middle attacks)
- Multi-Password-Level
Logic
- Up to 80 logic equations for protection, control and monitoring
Time Synchronisation
- SNTP, IRIG-B00X, Modbus, DNP 3.0, IEC 60870-5-103/-104
Technical Specs

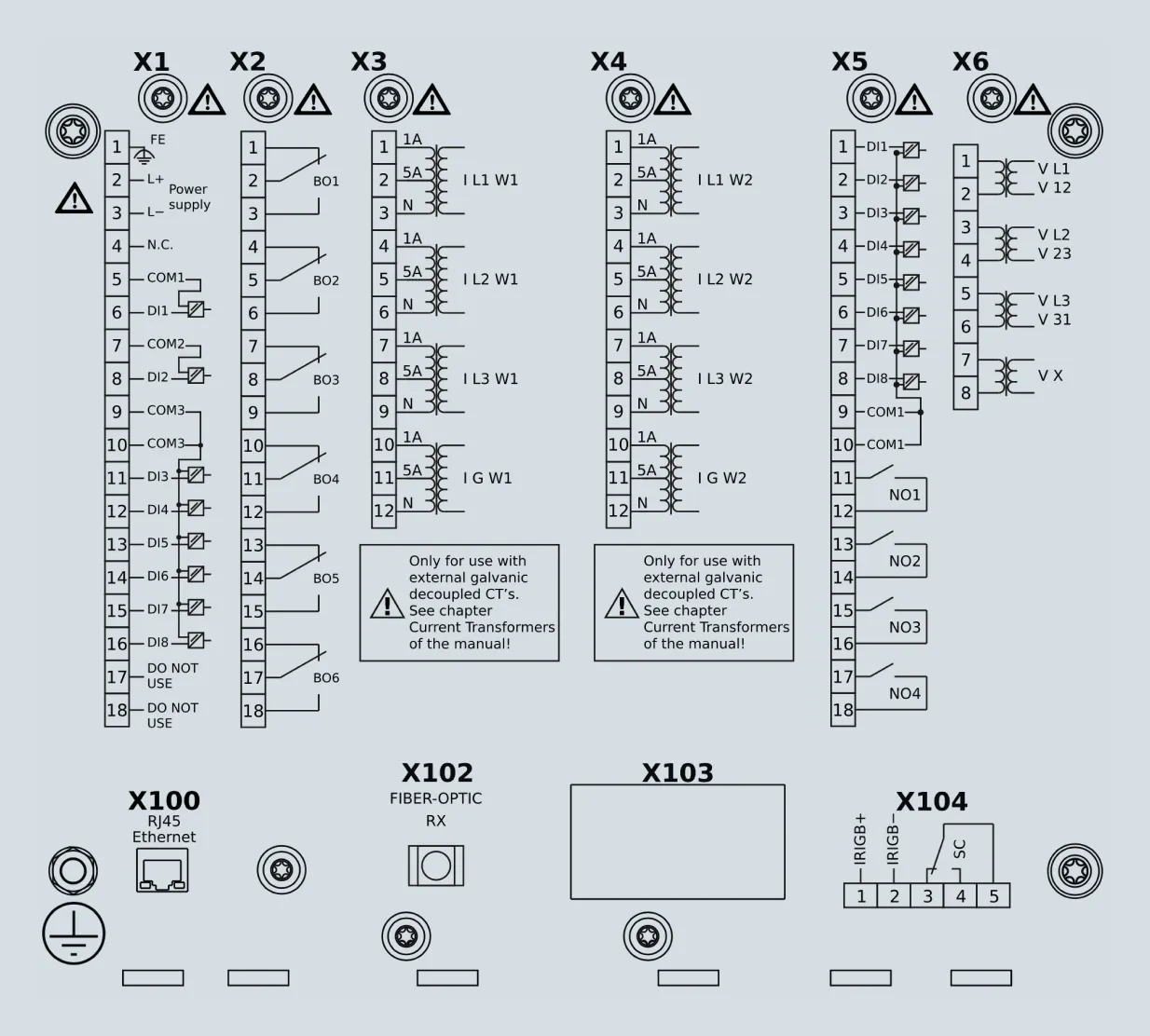

Connections (Example)
certified regarding CSA-C22.2 No. 14
(Industrial Controls)
Type tested and certified by KEMA Laboratories in accordance with the complete type test requirements of IEC 60255‑1:2009.
certified by EAC
(Eurasian Conformity)
certified regarding UL508
(Industrial Controls)
CE certified
VDE FNN compliant
